Prestige Full Height Turnstile with Double Passage Swing Open Style
Exterior Security Automatic Door Access Entrance Gate
Full height prestige turnstile with double passage security mechanical automatic entrance gate for door access control.
Technical Specifications
| Parameter |
Value |
| Power consumption |
AC220V, 50Hz/AC110V, 60Hz (optional) |
| Housing material |
1.5-2mm, 304# stainless steel, corrosion resistant |
| Drive motor |
DC brushless motor |
| Channel width |
500-600mm |
| Pass speed |
30-40 persons/min |
| IP protection |
IP54 |
| Input signal optional |
DC12V/dry/contact/RS485/RS232/Remote |
| Railing-off against power off |
Yes |
| Working environment temperature |
-15°C to 75°C |
| Working environments |
Indoor, outdoor |
| Relative humidity |
≤95% coagulation free |
| MCBF |
2,500,000 cycle |
Standard Dimensions
| Lane No |
Turnstile Model |
Dimensions (L × W × H mm) |
| 1 |
GAT-511 |
1500 × 1350 × 2300 |
| 2 |
GAT-510 |
2400 × 1250 × 2300 |
| 3 |
GAT-525 |
4100 × 1500 × 2300 |
Key Features
- Anti-rushing function: gate automatically locks when signal is not received
- Power rear channel automatically unlocks for free rotation to meet fire safety requirements
- LED indicator light
- Compatible with access control systems, biometric systems, and other security equipment
- Unique two-way anti-reverse function
- Programmable operating status via control board
- Automatic reset function (1-60 seconds adjustable)
- Unidirectional or bidirectional control options
- Remote control and management capability
- Customizable box house length and design
- Adjustable normally open or closed settings

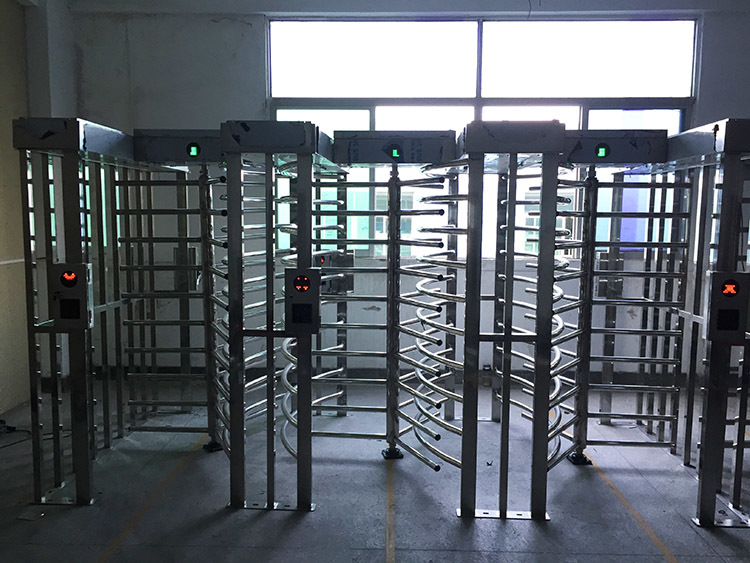

Project Images
About Our Company
Shenzhen Goldantell Technologies Co., Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years' experience.
Our main products include intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and other related security access control systems. We have exported to more than 50 countries and built long-term partnerships with clients worldwide.
Global Customers
We have successfully delivered turnstiles to more than 50 countries including Brazil, Chile, Peru, Colombia, United States, Australia, Canada, and many European, Asian, and African nations.
Frequently Asked Questions
Can you install RFID card reader on the turnstile?
Yes, we can install RFID card reader systems, fingerprint reader systems, token systems, ESD systems, and more.
What is your warranty and after-sales service?
We offer a 12-month quality guarantee and have English-speaking sales and after-sales service teams.
What is your lead time?
Standard items:
- 10-50 sets: 5 working days
- 50-100 sets: 7-10 working days
- 200-500 sets: 10-15 working days
Custom items require 3-10 additional working days.
What are your payment terms?
We accept TT, Western Union, L/C, and our company participates in trade assurance for order security.
How do you ship products?
Samples: by air or express (3-5 days)
Bulk orders: by sea (7-60 days depending on destination)
What packaging do you use?
Carton package inside with either crate package or closed wooden package outside.
Do you offer OEM services?
Yes, we offer custom turnstile designs, logo printing, and retail box customization.
Trade Terms
- Offer valid for 30 days
- Delivery within 7 days after payment
- Payment methods: T/T, LC, Western Union, Escrow, PayPal
- Packaging: Carton box + wooden case/crate
Delivery Options
- Sea freight: 15-60 days depending on destination
- Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
- Air cargo: 2-7 days
Our Services
- 24-hour response to inquiries
- English-speaking sales and support teams
- OEM services including custom logos and packaging
- Experienced engineering support
