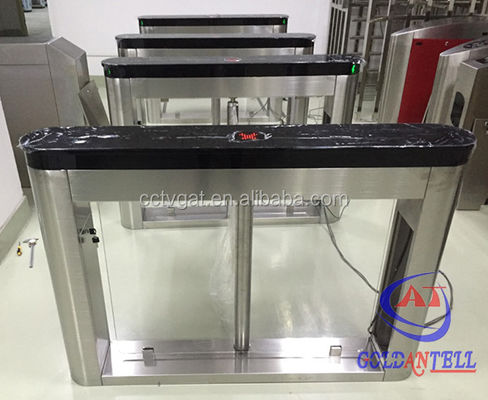

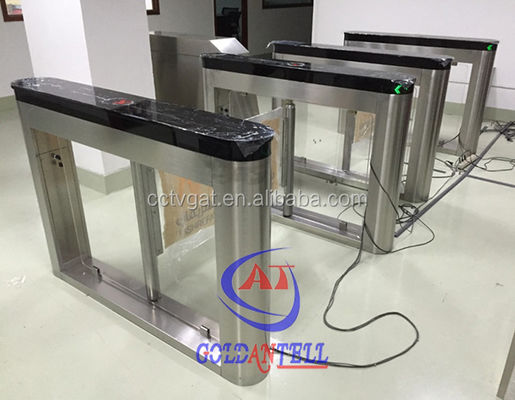

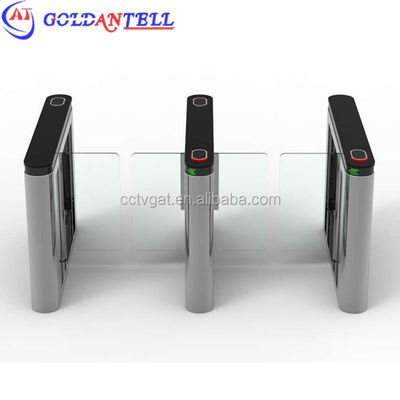

High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate

  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
Plaats van herkomst Guangdong, China
Merknaam Goldantell
Modelnummer GAT-686
Min. bestelaantal 2
Prijs $1,164

Contacteer me voor vrije steekproeven en coupons.

WatAPP:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Toegangscontroletype RFID -kaart, QR -code Openingstijd van de barrière 0,2 s
Communicatie -interface RS-232, TCP/IP, RS485 Werkrichting 2-weg
barrièremotor Borstelloze motor Materiaal Roestvrij staal, 304, 316 roestvrij staal
Beschermingsniveau IP54 Schuifsnelheid 0,6 Tweede
Stroomvoorziening AC 100-240V rijstrookbreedte 60 cm, 90 cm (aangepast 90 ~ 120cm)
Stroomsnelheid 35-40 personen per minuut Dimensie 1400 * 200 * 1000 mm
vleugelmateriaal Acryl Het terugstellentijd 10 seconden
Werktemperatuur -10℃ ~ 70℃
Markeren

0.6s Sliding Speed Swing Turnstile Gate

,

IP54 Protection Access Control Turnstile

,

35-40 Persons/Minute Security Turnstile
Laat een bericht achter
Productomschrijving
2D Barcode Ticket System Gate with RFID Card Swipe Turnstile
Product Description

High-performance swing access control turnstile for marine parks and secure facilities, compatible with 2D barcode tickets, QR codes, and RFID card systems.

Applications

Access Width: Within 900mm space for comfortable pedestrian passage

  • Public Places: Lobby entries, subways, airports, stations, libraries, parks, exhibition halls, stadiums, museums, apartments, offices, and commercial buildings
  • Entertainment Venues: Movie theaters, fitness centers, country clubs, fairgrounds, clubs, swimming pools, and gyms
  • Business Organizations: Hotels, factories, banks, prisons, hospitals, schools, and enterprise entrance/exit attendance systems
High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 0 High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 1
Technical Specifications
Type High speed gate & full automatic Swing Turnstile

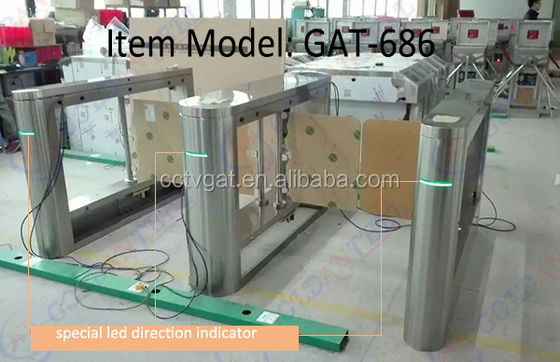

Product Model GAT-686
Product Size 1400×200×1000mm

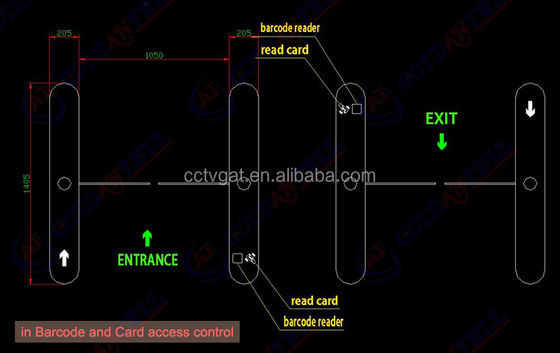

Path width Within 900mm (for one pair)
Direction Single or bi-directional (optional)
Time of opening/closing 0.6 second
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Reset time after break down 10 seconds
Normal running life 3 million cycles
Working environment Indoor/outdoor (with shelter) -10℃~70℃
Drive motor DC24V brush motor
Key Features
  • Self-diagnostic and alarm functions for easy maintenance
  • Programmable operation status via control board
  • Anti-pinch safety protection
  • Visual and audible alarms for unauthorized access
  • Automatic locking until receiving opening signal
  • Adjustable door synchronization
  • Automatic reset function with adjustable timing
  • Optional LCD information display
  • Audible operation prompts
Construction & Materials
  • 304 stainless steel construction
  • IP54 waterproof rating
  • Elegant, anti-rust design
  • CE Certified
  • Fail-safe operation (opens when power is off)
  • Compatible with multiple access control systems (RFID, fingerprint, QR/barcode, ESD)
High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 2 High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 3
Customization Options

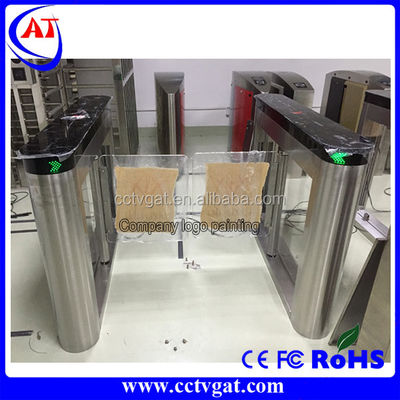

  • Company logo printing
  • Custom dimensions and shapes
  • Optional LED indicators and LCD displays
  • Special color configurations
Company Information

Shenzhen Goldantell Technologies Co., Ltd is a leading manufacturer of intelligent turnstiles and parking management systems with over 8 years of industry experience. Our products are exported to more than 50 countries worldwide.

High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 4 High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 5
Contact Information
Contact Person: Vivian Zhou
Skype: goldantell02
WeChat: junziyouxin
WhatsApp: +86 13699796334
