IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate

  • IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate
  • IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate
  • IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate
  • IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate
  • IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate
  • IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate
Plaats van herkomst Guangdong, China
Merknaam Goldantell
Modelnummer Gat-660
Min. bestelaantal 2
Prijs $855-1,205

Contacteer me voor vrije steekproeven en coupons.

WatAPP:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Stroomtarieven 35 of 40 personen per minuut Schuifsnelheid 0,6 Tweede
Stroomvoorziening AC 100-240V IP -beoordeling IP54
rijstrookbreedte 600 mm (max: 900 mm) Dimensie 1200 * 300 * 1000 (mm)
Materiaal 304, 316 Roestvrij staal vleugelmateriaal Acryl
Mededeling TCP/IP, RS485 Productgrootte 1400*200*1000mm
Richting enig of tweerichtings (facultatief) Het terugstellentijd 10 seconden
Running life 3 miljoen Werkomgeving -10 ℃ ~ 70 ℃
Rijmotor DC24V borstelmotor
Markeren

IP54 Rated Swing Barrier Gate

,

0.6 Second Sliding Speed Swing Barrier Gate

,

35-40 Persons/Minute Swing Barrier Gate
Laat een bericht achter
Productomschrijving
Fast Speed Lane Crowd Control Sliding Swing Turnstiles Gate
High-performance sliding swing turnstiles designed for efficient crowd control in various public and commercial spaces. Features rapid operation, durable construction, and flexible configuration options.
Applications
Public Spaces:
  • Lobby entries, Subways, Airports, Stations
  • Libraries, Bookstores, Parks, Exhibition halls
  • Stadiums, Museums, Apartments, Residential Areas
  • Offices, Commercial buildings
Entertainment Venues:
  • Movie theaters, Fitness centers, Country clubs
  • Fairgrounds, Clubs, Swimming pools, Gyms
Business Organizations:
  • Hotels, Factories, Banks, Prisons
  • Hospitals, Schools, Enterprise entrances
Application Examples

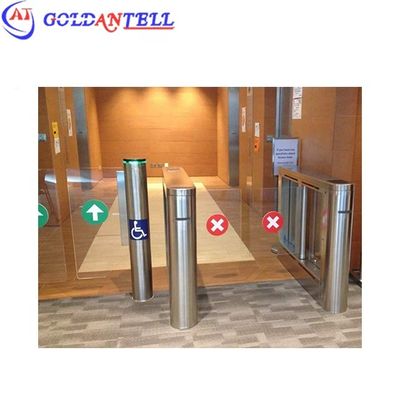

Single Lane Configuration
IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate 0

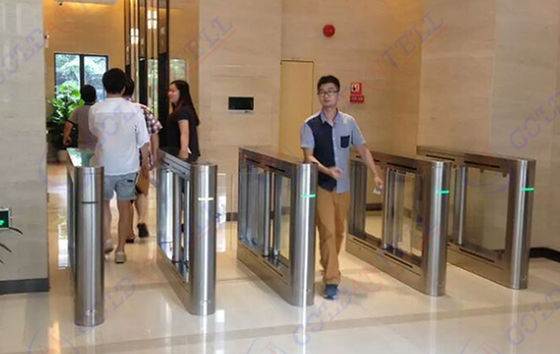

Multiple Lane Configuration (2, 3, 4 or more channels)
IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate 1
Technical Specifications
Product Model GAT-660
Product Size 1400*200*1000mm
Path Width 600mm or 900mm (per pair)
Direction Single or bi-directional (optional)
Operation Speed 0.6 second opening/closing time
Passage Rate 40 persons/min (open), 25-30 persons/min (closed)
Reset Time 10 seconds after breakdown
Service Life 3 million cycles
Operating Environment Indoor/outdoor (with cover) -10℃~70℃
Drive Motor DC24V brush motor
Key Features

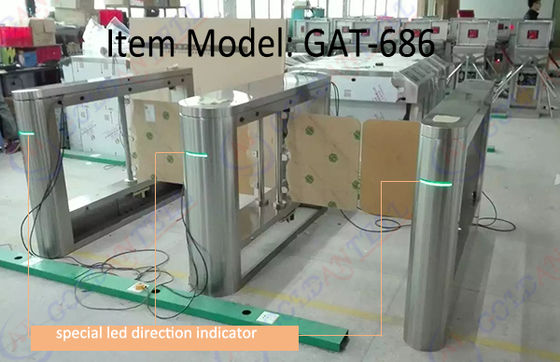

  • Directional LED optical signals (Green Arrow/RED Cross indicators)
  • Fault self-check and alarm functions for easy maintenance
  • Specially processed mechanism for enhanced durability
  • Always open or close modes with automatic retraction during fire alarms
  • Ensures rapid, efficient and safe access control
  • Compatible with various access systems (Magnetic card, Barcode, ID card, IC card)
  • Standard photo-electric beams for all models

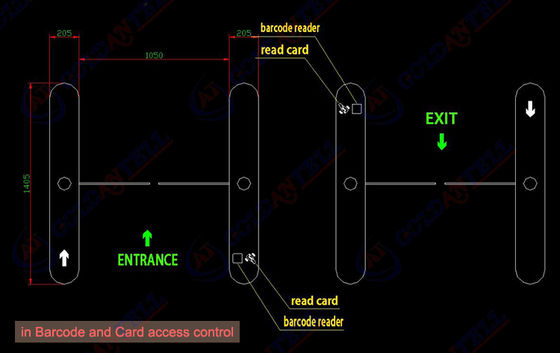

Product Dimensions
IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate 2
Product Classification
  • Vertical shape
  • Bridge shape (this model)
  • Pillar shape (tube type)
  • Single motor (for single/multiple passageways) or Double motors (for multiple passageways)

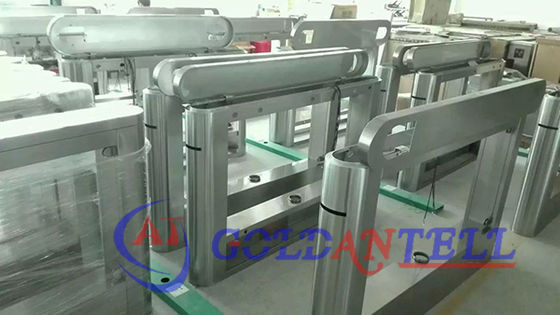

Professional Packaging
IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate 3
Certification
IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate 4
Note: All specifications and features are subject to change without notice. Contact us for the most current product information.
