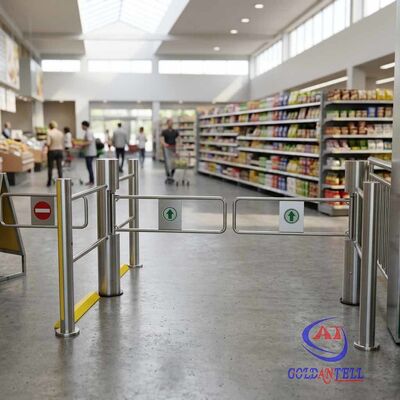

ADA Compliant Automatic Retail Swing Gate SUS304 Barrier for Supermarket Wheelchair and Shopping Trolley Access CE

  • ADA Compliant Automatic Retail Swing Gate SUS304 Barrier for Supermarket Wheelchair and Shopping Trolley Access CE
  • ADA Compliant Automatic Retail Swing Gate SUS304 Barrier for Supermarket Wheelchair and Shopping Trolley Access CE
Plaats van herkomst Guang Dong, China
Merknaam Goldantell
Certificering CE/ROHS/FCC/IS9001
Modelnummer GAT-614
Min. bestelaantal 1 st
Prijs Onderhandelbaar
Verpakking Details Eerst verpakt in karton, en vervolgens versterkt met export houten kist voor buitenverpakking
Levertijd 7 werkdagen na ontvangst van uw betaling
Betalingscondities T/T,Western Union,L/C
Levering vermogen 2,000pcs per maand
Productdetails
Materiaal 304 roestvrij steel/316-roestvrij staal Netto gewicht 85KG/set
Bruto gewicht 90KG/set Productgrootte diameter: hoofdpaal: Φ168 mm hoogte: 1000 mm
Werkspanning AC220±10%V 50±10%HZ Doorgangsbreedte 450850mm
De hoek van het schommelingswapen 180 graden Operatiesnelheid 1 seconde openings-/sluitingstijd
Laat een bericht achter
Productomschrijving
ADA Compliant Automatic Retail Swing Gate
Product Overview

SUS304 Barrier for Supermarket Wheelchair and Shopping Trolley Access CE Certified

  • Automatic Opening: Instantly opens for wheelchair and shopping trolley access
  • One-Way Operation: Ensures smooth flow in one direction
  • Quick Response: Opens within 0.6 seconds for efficient passage
  • CE Certified: Meets European safety standards
  • Brushless Motor: Reliable and energy-efficient design
Technical Specifications
Control Methods Push button, RFID card, fingerprint recognition
Working Voltage AC220±10%V 50±10%HZ
Dimensions Diameter: Φ168mm, Height: 1000mm
Passage Width 450-850mm
Swing Arm Angle 180 degrees
Direction Single or bi-directional (optional)
Operation Speed 1 second opening/closing time
Capacity 40 persons/min (open), 25-30 persons/min (closed)
Durability 3 million cycle lifespan
Operating Environment Indoor/outdoor (with cover) -10℃～70℃
Motor DC24V brush motor
Advanced Features
  • Adjustable pillar height and telescopic arm length with material options
  • Infrared reset and anti-pinch functions with sound/light alarms
  • Configurable as normally open or closed for different environments
  • Bidirectional operation with infrared sensing for entry/exit control
  • Programmable via main control board buttons
  • Mechanical and infrared anti-pinch protection with automatic reset
  • Automatic locking for unauthorized access attempts
  • Collision avoidance protection for swing arms
  • Adjustable automatic reset timing (1-60 seconds)
  • Compatibility with access control, biometric, and ESD systems
  • Remote management capability via computer
  • Meets all fire safety requirements
Applications
Public Spaces
  • Supermarkets & Retail Stores
  • Transportation Hubs (Subway, Airports, Stations)
  • Cultural Venues (Libraries, Museums, Exhibition Halls)
  • Recreational Areas (Parks, Stadiums)
  • Residential & Office Buildings
Commercial & Institutional
  • Hotels & Hospitality
  • Factories & Industrial Facilities
  • Financial Institutions (Banks)
  • Healthcare Facilities (Hospitals)
  • Educational Institutions
  • Correctional Facilities
Installation Examples
Swing turnstile gate installed at residential complex entrance
Residential Complex Entrance Installation
Swing turnstile gate used in urban street setting
Urban Street Application
Customization Options
  • Custom appearance design available
  • Stainless steel thickness options: 1.2-2.0mm
  • Material grades: 304 or 316 stainless steel
  • Surface finishes: satin, polished, anti-fingerprint, frosted, electroplated, or baked
